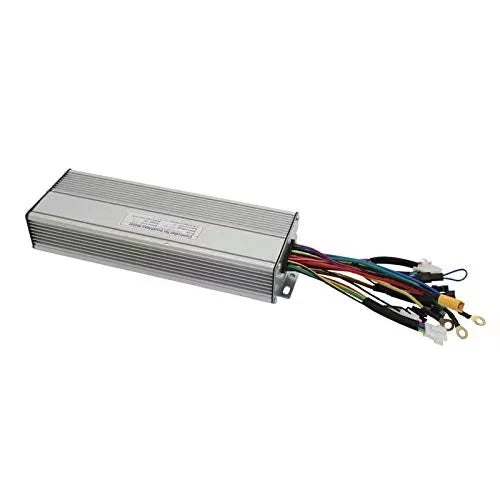

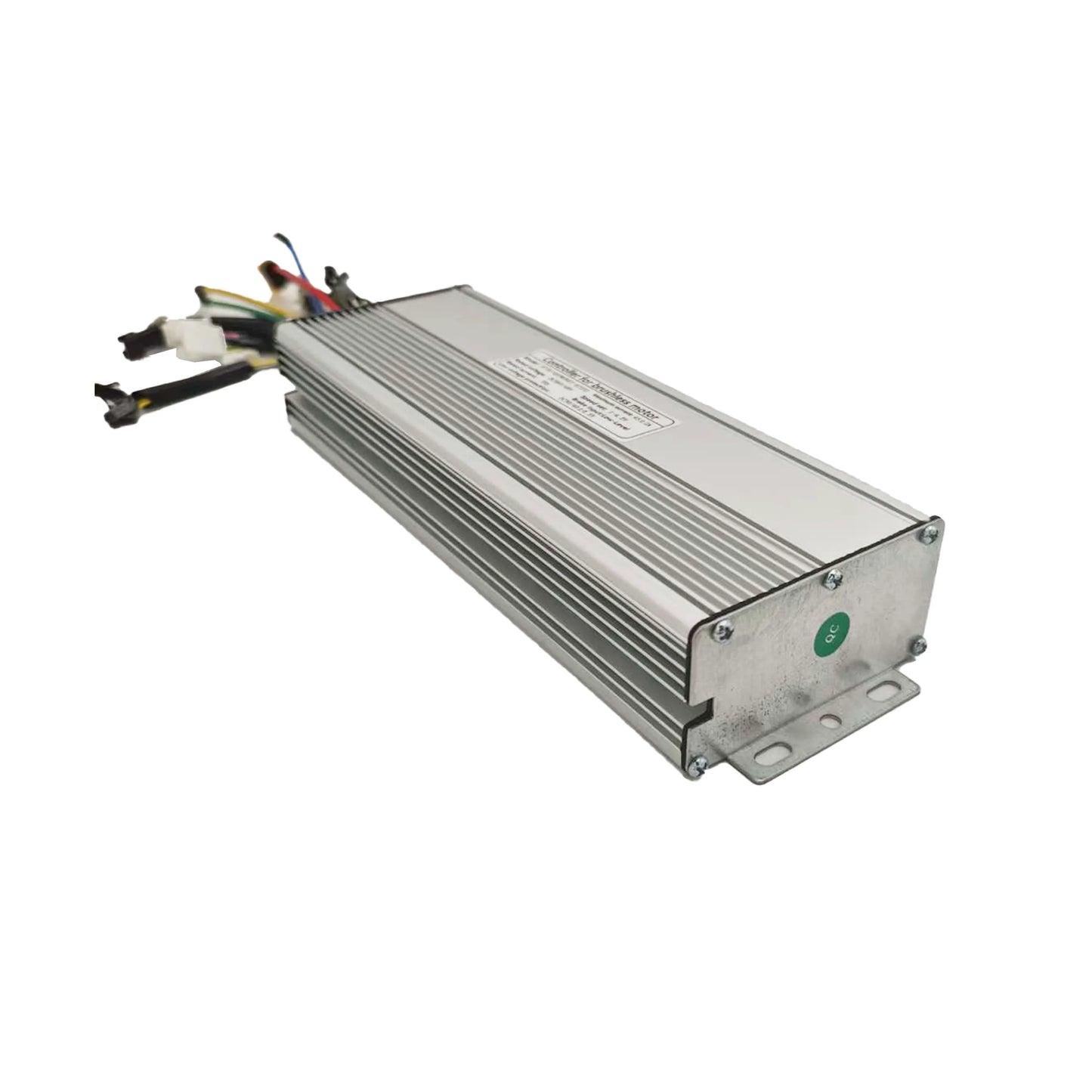

KT Ebike 36V/48V 1500W 1800W 45A Electric Bike DIY Kit Brushless DC Controller Regenerative Conversion

KT Ebike 36V/48V 1500W 1800W 45A Electric Bike DIY Kit Brushless DC Controller Regenerative Conversion

$338.00 USD
$0.00 USD $338.00 USD
Sale Sold out

SPECIFICATIONS

Brand Name: CONHISMOTOR

High-concerned chemical: None

Origin: Mainland China

KT 36V/48V 1500W 1800W 45A Ebike Brushless DC Sine Wave Controller support Regenerative Function


Applicatoin:36V/48V 792-1620W, 1056-2160W Brushless Hall Sensor Motor

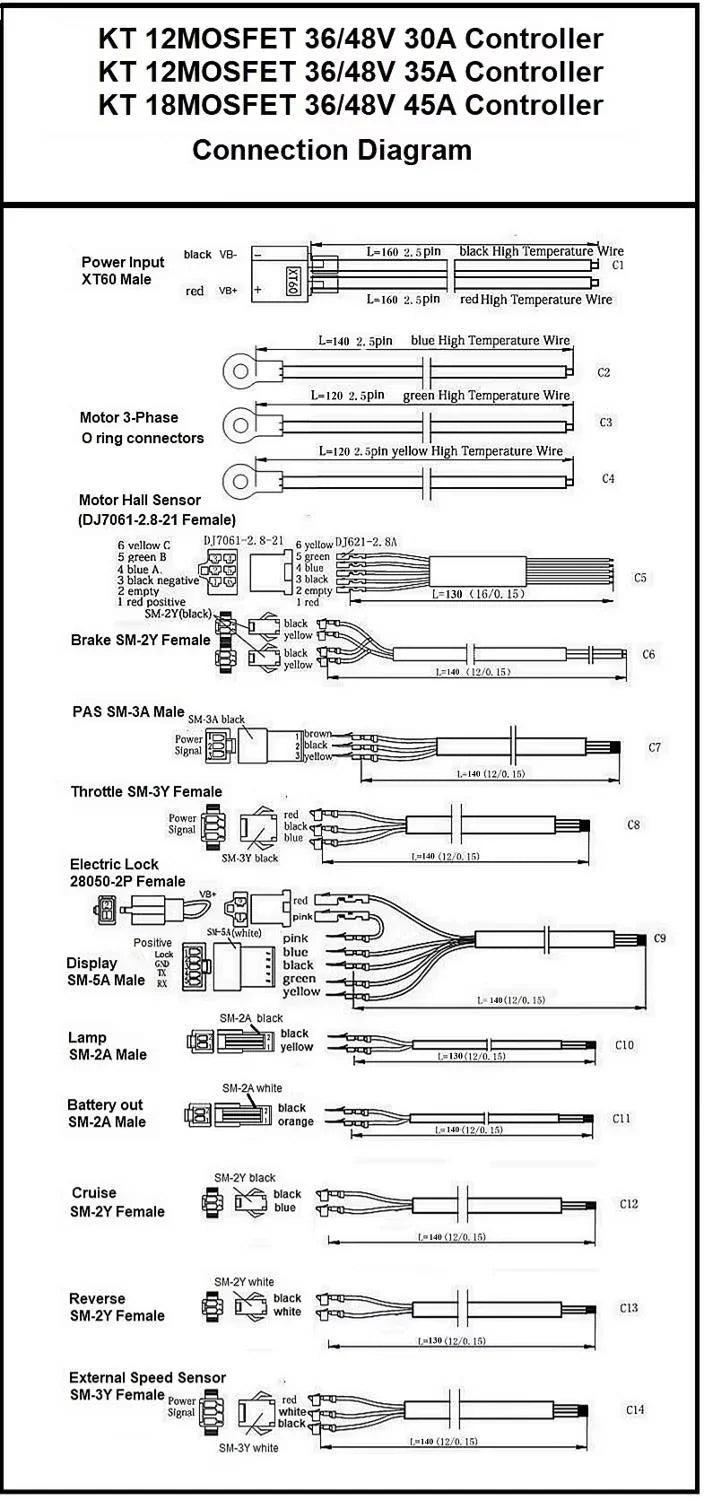

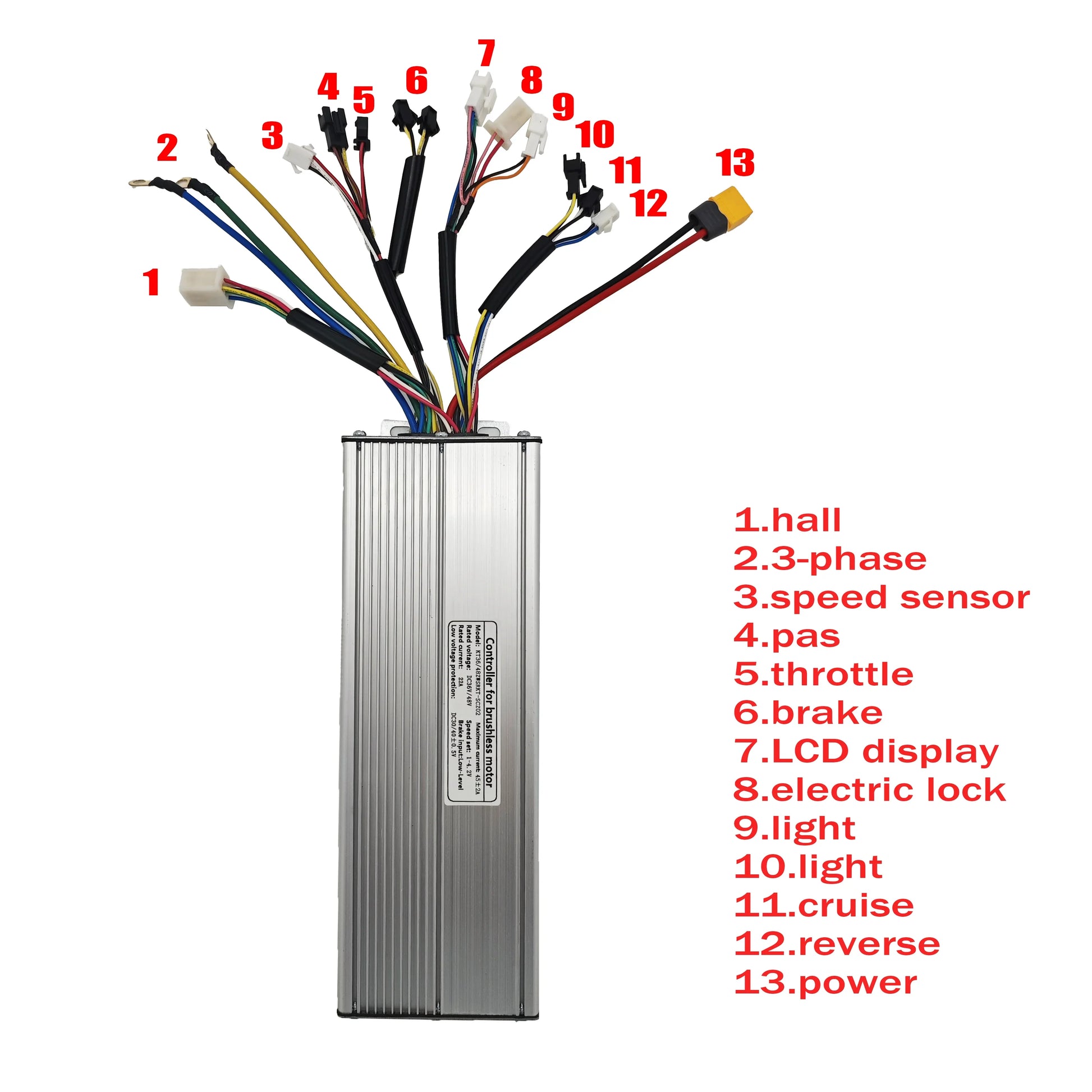

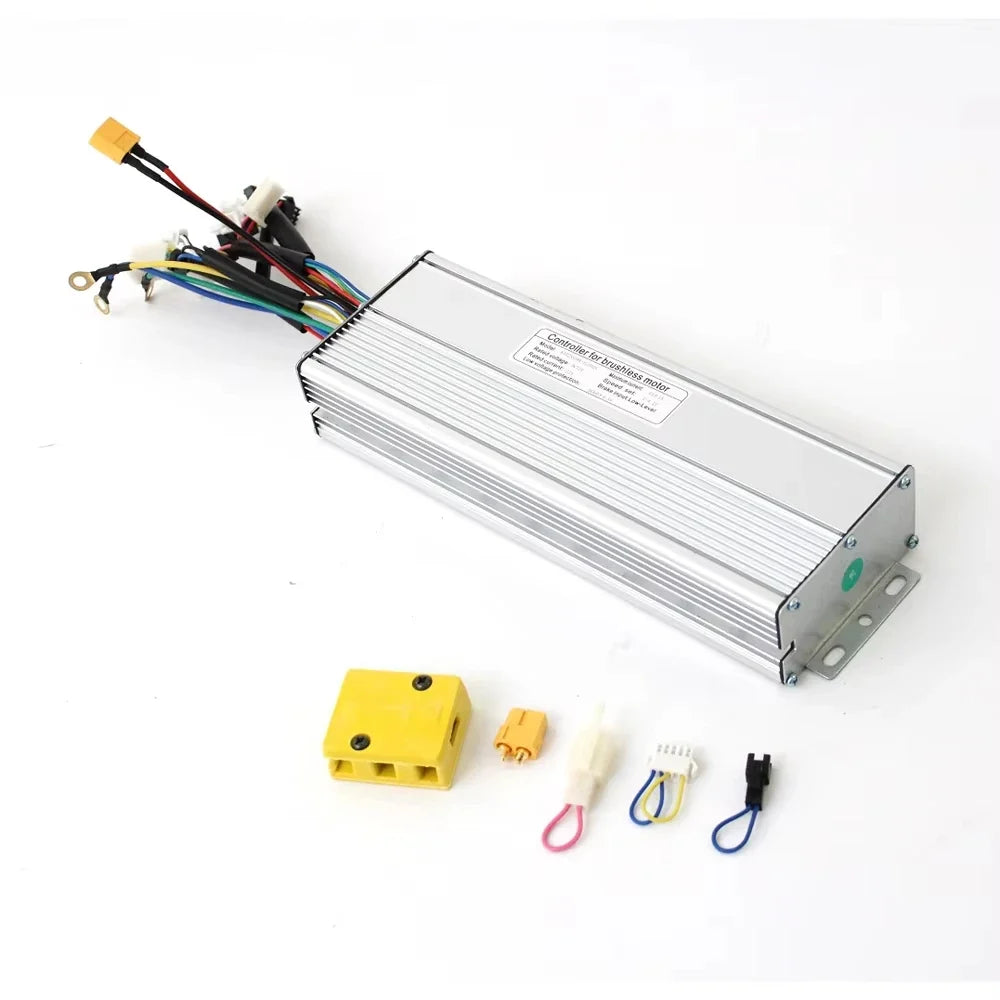

Parts Include:Controller, "O" ring 3-phase cable connection box, Connector (XT60 Female), Jumper Connectors(Display, Electric Lock, Cruise Jumper)
Support Regenerative Function (must use KT LCD Display together to active this function)

Technical Data:
Rated Voltage: DC 36V/48V
Rated Current: 22A
Low Voltage Protection: DC30/40V±0.5V
Max. Current: 45±1A
Speed set: 1-4.2V
Brake Input: Low-Level

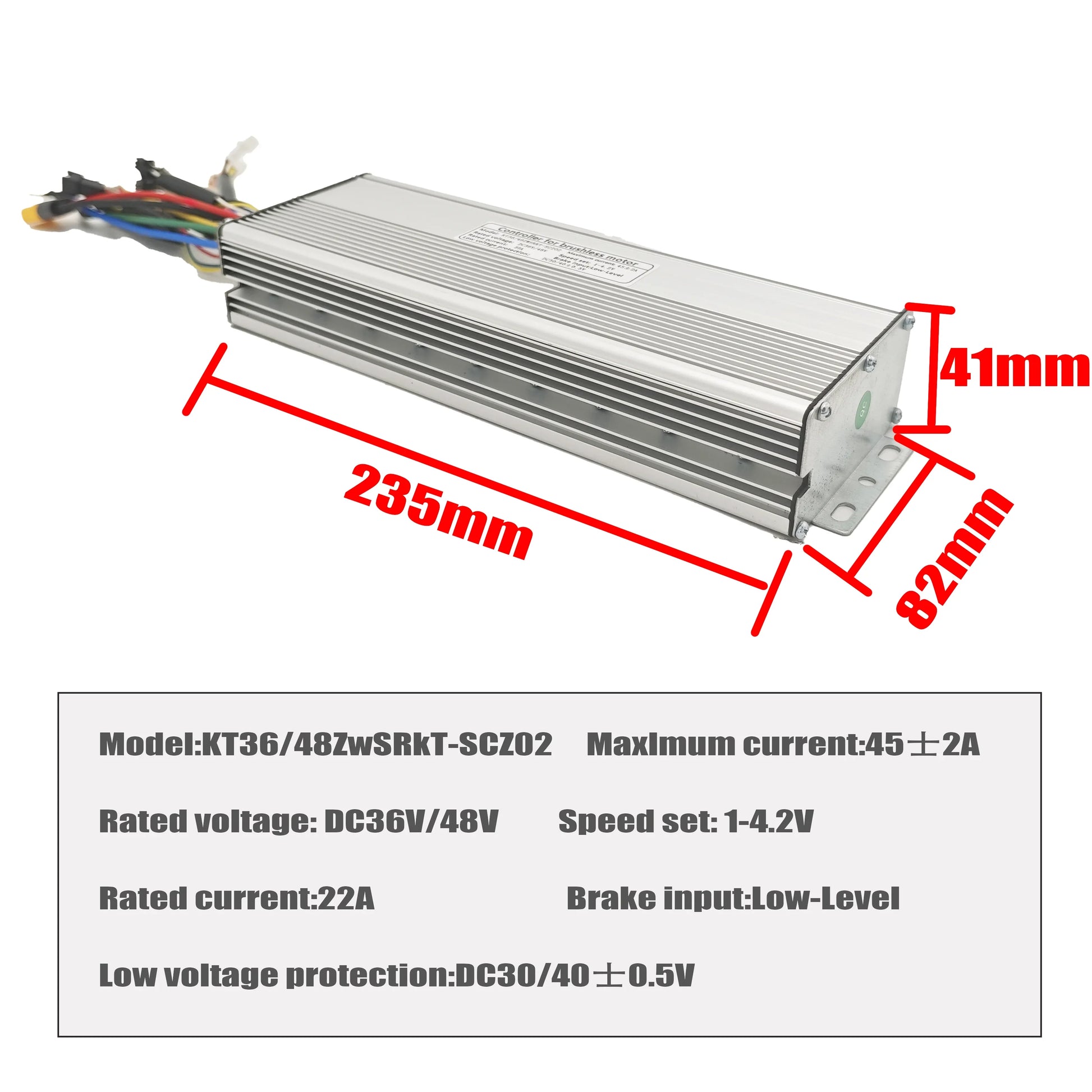

Size: 235x82x41mm
Color: Silver
18 pcs MOSFET
Applicatoin Power:
Rated: 36V/48V 792W, 1620W;
Max.: 36V/48V 1056W, 2160W
Advantages:
Intelligent dual-mode brushless sine wave controller(Compatible with Hall without Hall motors)
36V/48V Universal Voltage
Stable, high efficiency, low current consumption, long life
Support LED Control Panel or LCD Control Panel or without any Control Panel (Connect Display Jumper)
Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost.
With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
Support Electric Lock Function
Support two modes light control (36V/48V): Mini 100mA Current Light Control by Display, Normal Current Light Control by switch
Support Cruise Function
Support Reverse Function
