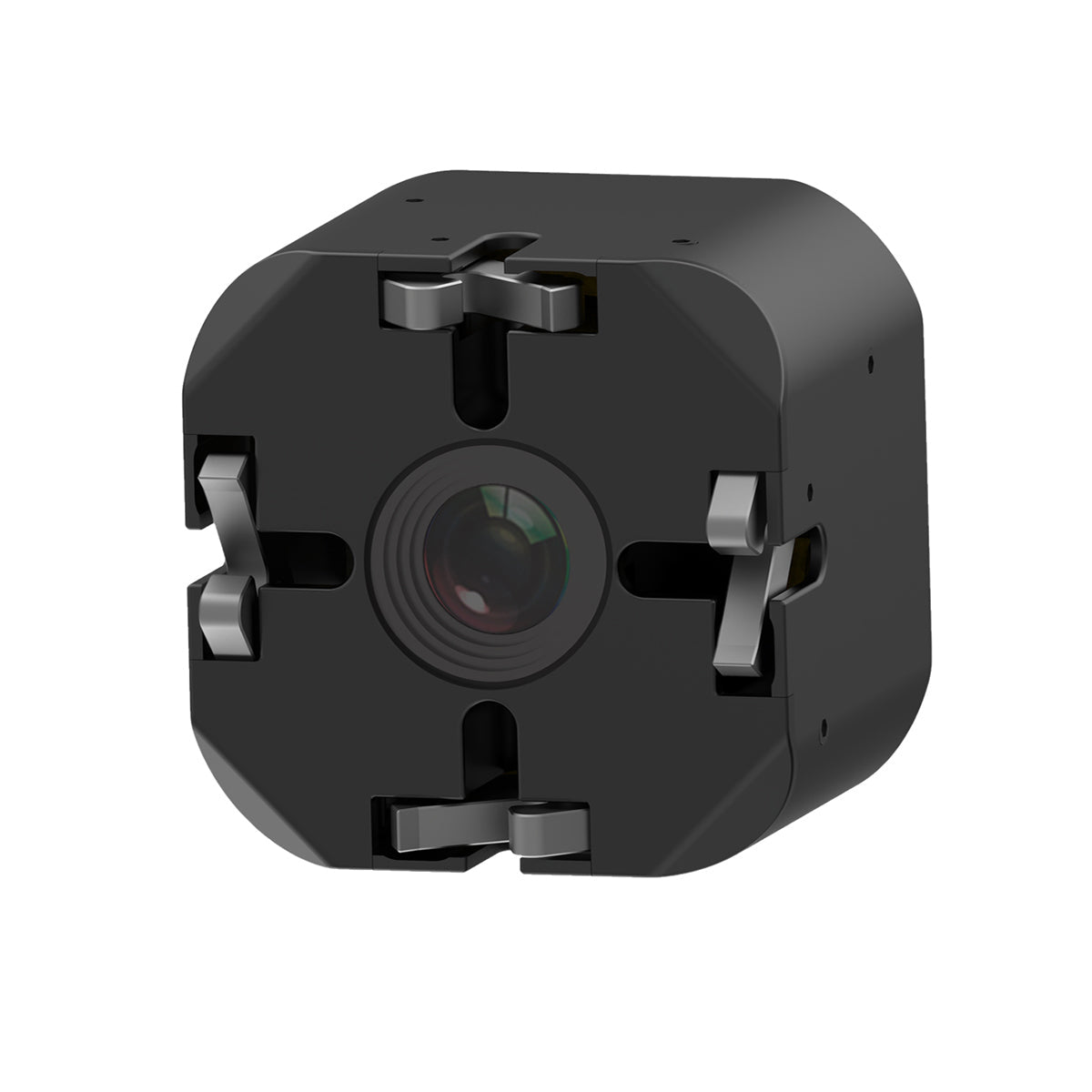

JZ Drones PTS4 Visual Drop Kit for Matrice Series: Multi-Hook Visual Payload Delivery System for Precision Airdrop
Operations
The JZ Drones PTS4 Visual Drop Kit is a DJI PSDK-based aerial payload delivery system designed for controlled,
repeatable deployment of mission-critical items using DJI Matrice platforms, including the Matrice 300 RTK, Matrice
350 RTK, and Matrice 400. It mounts through the DJI SkyPort V2 interface and integrates directly with the DJI Pilot 2
app, allowing operators to monitor payload status and control release in real time.
The system is used in search and rescue, emergency response, and industrial operations where accurate aerial delivery
is required. With four independent hooks and an integrated 1080P camera, operators can visually confirm target
locations and execute precise multi-point payload drops during a single flight, improving efficiency and operational
control.
Key Features and Benefits
Four-hook system: supports 4 independent mounts for multi-point payload deployment
Integrated camera: delivers 1920×1080 HD video for real-time targeting confirmation
Payload capacity: supports up to 5 kg (11.02 lbs) per mount
Total capacity: carries up to 20 kg (44.09 lbs) combined payload weight

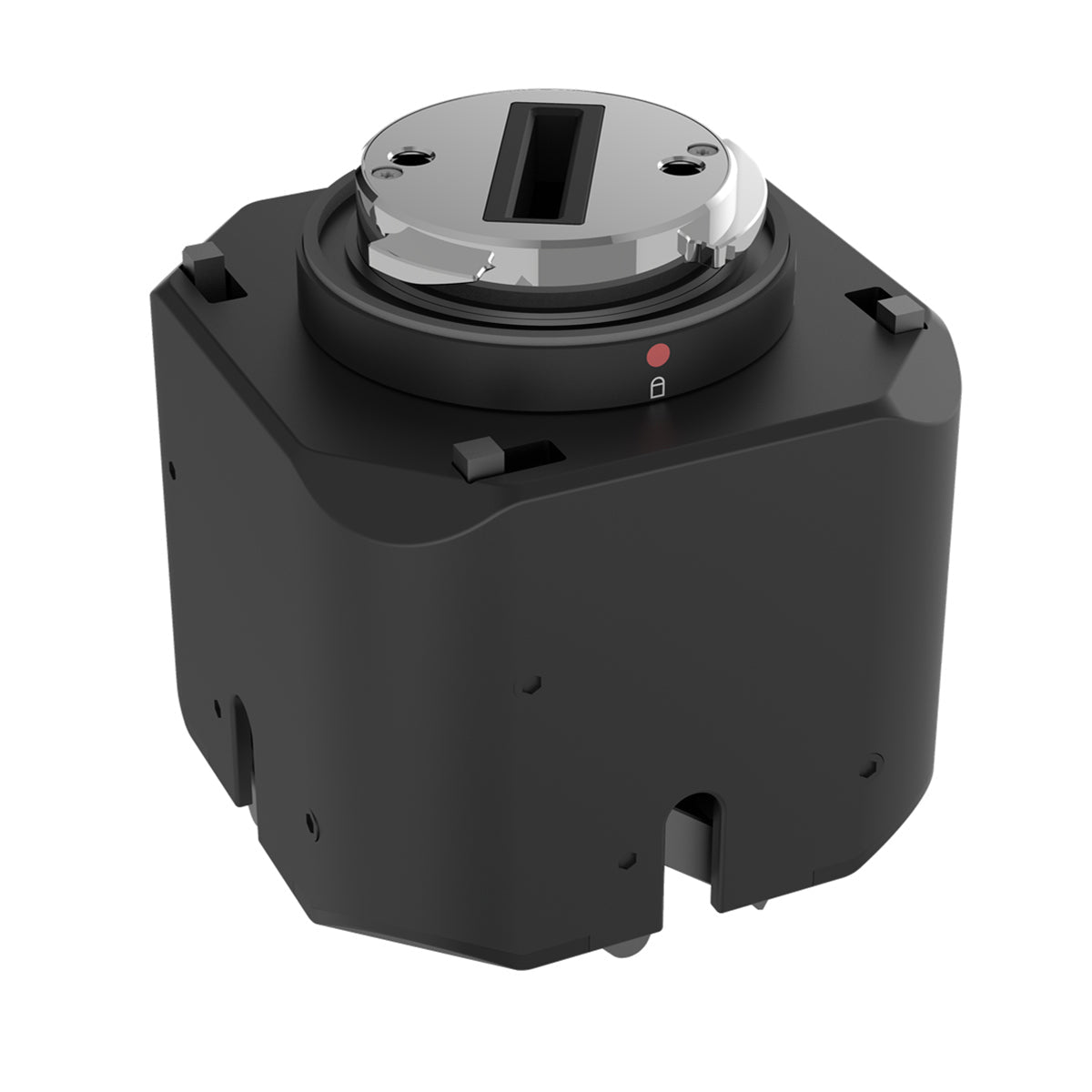

SkyPort V2 interface: enables fast mounting with secure electrical connection
Pilot 2 integration: displays real-time hook status and release controls
One-key release: deploys all payloads simultaneously with single command input
Alloy construction: full-metal structure improves durability and mounting stability
Applications and Use Cases
Search and rescue: delivers medical supplies or flotation devices to stranded individuals
Fire response: deploys fire suppression payloads into targeted hazard zones safely
Emergency logistics: transports food and medicine to remote or inaccessible areas
Utility operations: supports line deployment or placement of lightweight field equipment
Disaster response: enables rapid distribution of aid across affected regions
Industrial delivery: releases tools or materials during controlled onsite operations
The PTS4 provides a controlled and repeatable method for aerial payload deployment in high-risk or time-sensitive
missions. Its multi-hook architecture, real-time visual feedback, and direct DJI integration support consistent
execution across varied operational scenarios.
