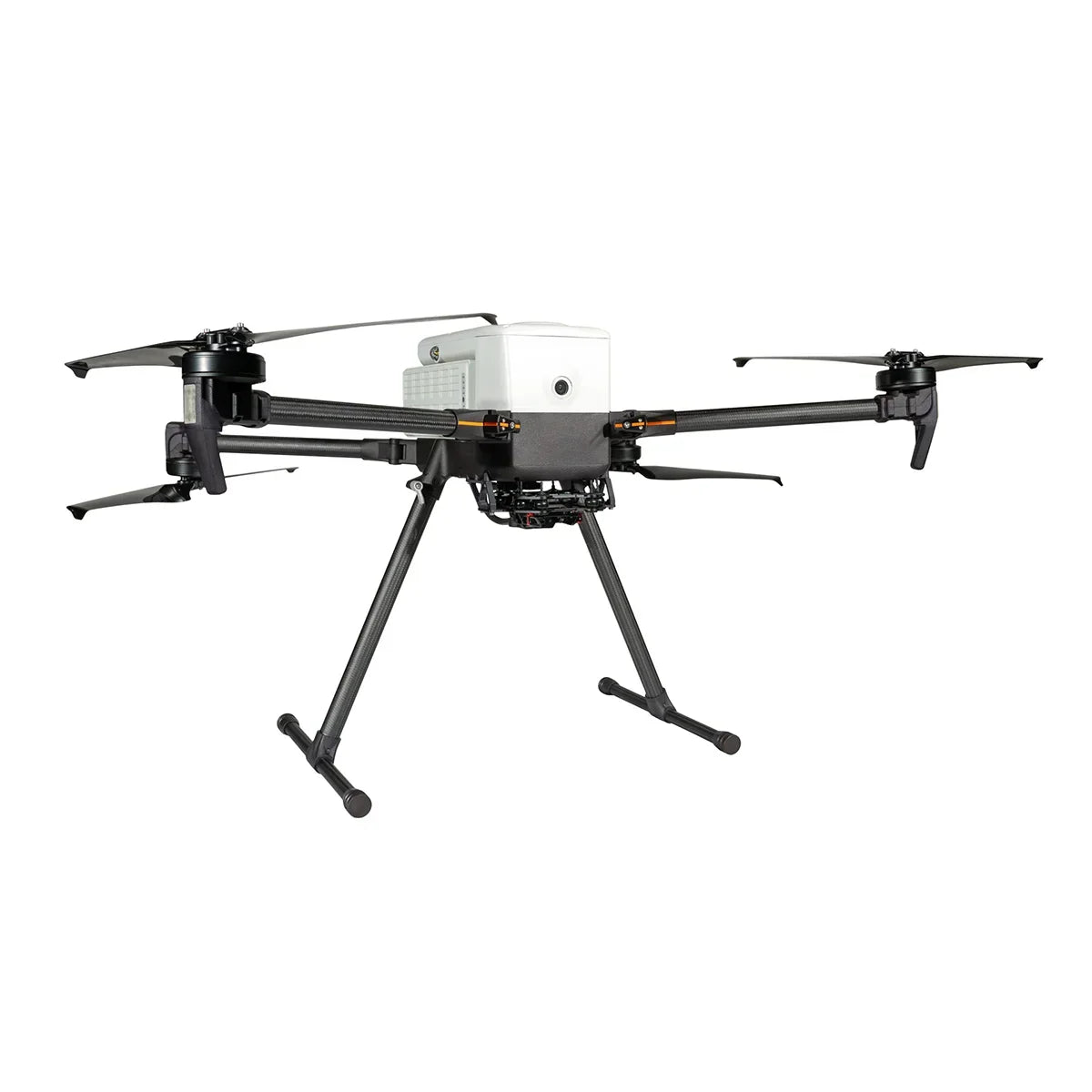

Inspired Flight IF800 Quadcopter with Blue Herelink GCS

Inspired Flight IF800 Quadcopter With Blue Herelink GCS: Hot-Swap Batteries and Tool-Free Payload Changes for Daily Sensor Work

The Inspired Flight IF800 Quadcopter with Blue Herelink Ground Control Station gives programs a medium-lift, American-made platform that is ready for a sensor the day it arrives, with a controller, two flight batteries, a charger set, and a rugged transport case packed in the kit. Whether you are fielding your first IF800 or adding aircraft to an existing fleet, the airframe lifts up to 6.6 lb (3.0 kg) with a rated maximum flight time of 54 minutes. A tool-free payload mount, hot-swappable IB388 batteries, and Blue UAS certification keep it practical for daily operations and compliance-driven procurement alike.

The sensor is the one piece this kit leaves to you. Optical, EO/IR, multispectral, geophysical, and LiDAR payloads are all supported types and are sold separately. What does ship is organized by role: 1x IF800 Quadcopter in the air, 2x Flight Batteries and 1x Charger Set for power, 1x Blue Herelink Ground Control Station for control, and 1x Rugged Transport Case for storage and travel. Dronefly can help match a payload to your mission, whether this is your only IF800 or one of several.

Key Features and Benefits

• Medium-lift airframe: handles payloads up to 6.6 lb (3.0 kg)
• Endurance rating: up to 54 minutes of maximum flight time
• Real-world runtime: over 40 minutes reported with Gremsy VIO payloads
• Battery system: dual intelligent IB388 packs support hot-swapping between flights
• Battery health: cell balancing, health monitoring, and cycle tracking built in
• Quick sensor swaps: tool-free payload mount with mechanical safety locks
• Standard interface: uses the Pixhawk Payload Bus Standard for connected payloads
• Center-of-gravity rail: adjustable payload rail balances sensors, optics, and LiDAR payloads
• Built-in FPV: onboard camera gives pilots a first-person flight view
• Compact stowage: packs to 14.2×17.4×7.8 in (36×44×20 cm) when folded

One Airframe, Many Sensor Programs

A medium-lift platform earns its place when the same aircraft can serve several jobs. Wind resistance is rated at 19 knots (10 m/s), with gusts to 23 knots (12 m/s), top airspeed is 49 mph (22 m/s), and the safe operating range is 14°F to 113°F (-10°C to 45°C). The ceiling of 14,000 ft (4.2 km) unloaded falls to 6,500 ft (2.0 km) at the full 6.6 lb (3.0 kg), so planners match payload to altitude. Because payloads change without tools and batteries swap in the field, one IF800 can cover inspection, mapping, and LiDAR work without a second airframe.

Compatibility and System Integration

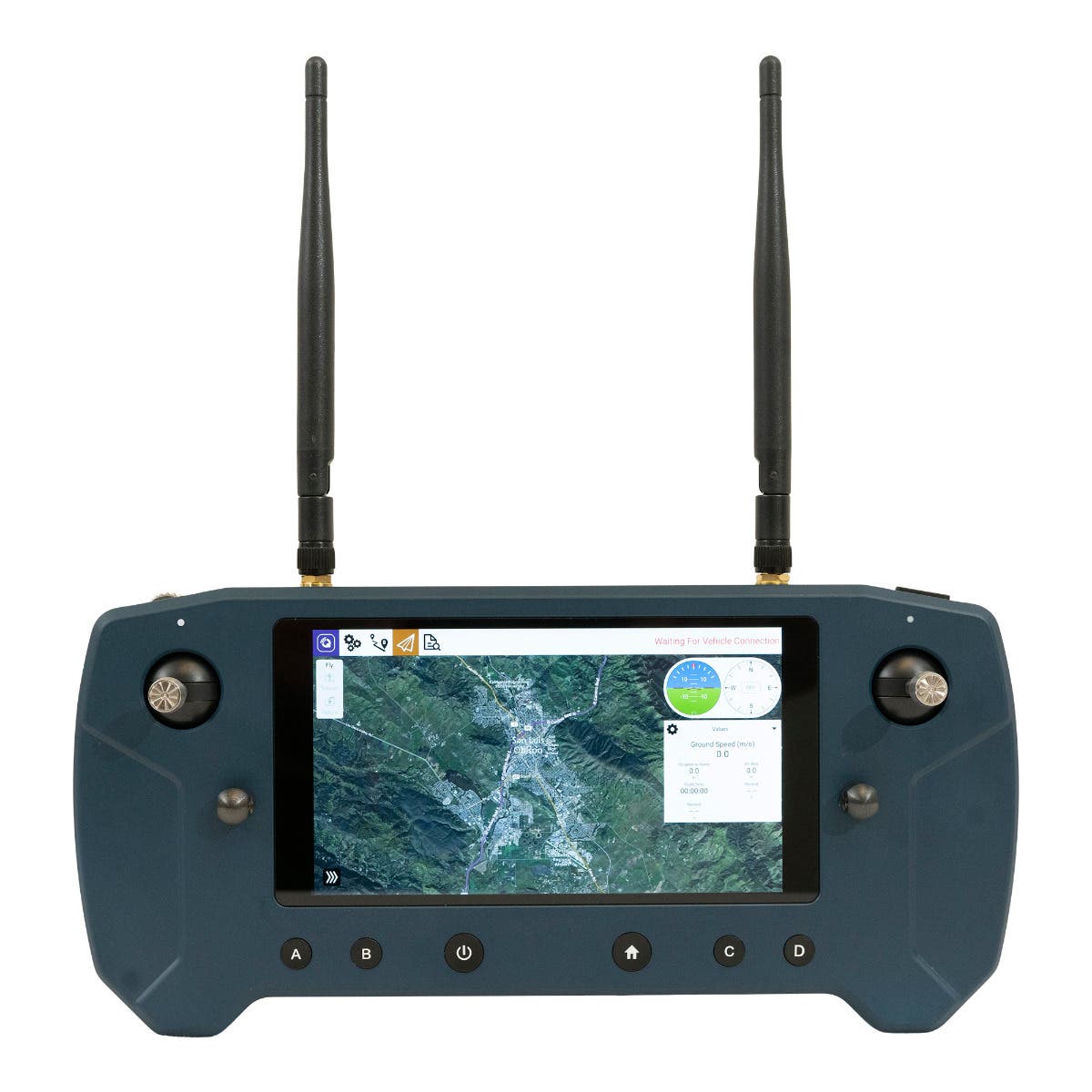

• Blue Herelink Ground Control Station (1x included): 5.46-inch controller with 1000 nits
• IB388 Flight Batteries (2x included): hot-swappable intelligent packs with NFC status checks
• Charger Set (1x included): supplies power for the flight batteries
• Rugged Transport Case (1x included): rolling hard case with a retractable handle
• EO/IR and optical payloads (sold separately): mount without tools on the aircraft
• LiDAR and multispectral sensors (sold separately): supported payload categories per Inspired Flight
• Sentera 65R RGB camera (sold separately): high-resolution payload named by Inspired Flight
• Gremsy VIO (sold separately): named payload cited for over 40-minute flights

Applications and Use Cases

• Infrastructure inspection: gather optical or EO/IR data across assets and structures
• Corridor LiDAR mapping: collect terrain data with a LiDAR payload
• Crop monitoring: fly multispectral sensors for detailed agricultural field analysis
• Geophysical work: carry specialized survey sensors within published payload limits
• Compliance-driven programs: field a Blue UAS certified aircraft with NDAA compliance
• First sensor aircraft: start with a complete kit and add one payload
• Fleet standardization: equip several aircraft with the same controller and batteries

A single IF800 kit gets a team from purchase to payload installation with the controller, power, and case already settled. That keeps the decision focused on which sensor to fly, whether the program is one aircraft or a growing group of them.

Dronefly works with buyers at every scale, from a single IF800 for one team to several aircraft for a larger program, and helps match the airframe to the payload and mission. Every item in this kit is listed with its quantity, and payloads are clearly marked as sold separately, so there are no surprises at delivery. Shop now and get your Inspired Flight IF800 Quadcopter with Blue Herelink GCS from Dronefly.
