SPECIFICATIONS

Applicable Object: For Game

Battery Included: Yes

Brand Name: HXSJ

Choice: yes

High-concerned chemical: none

Interface: USB,USB

Keyboard Connection: WireLess

KeyboardMouseType: 2.4ghzwireless

Model Number: L500+T66

Mouse Connection: WireLess

Origin: Mainland China

Package: Yes

Supports Human Engineering: Yes

Type: ERGONOMIC

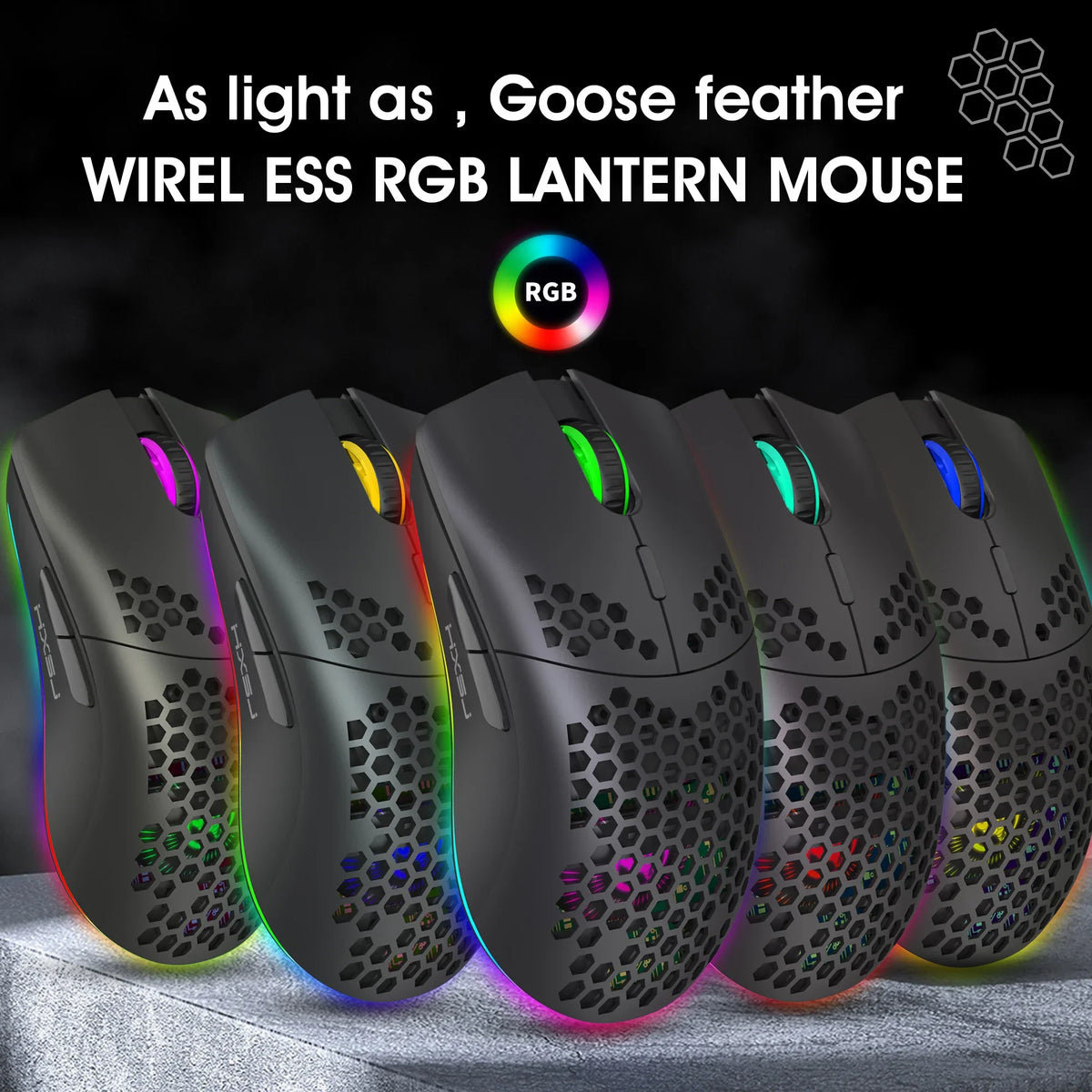

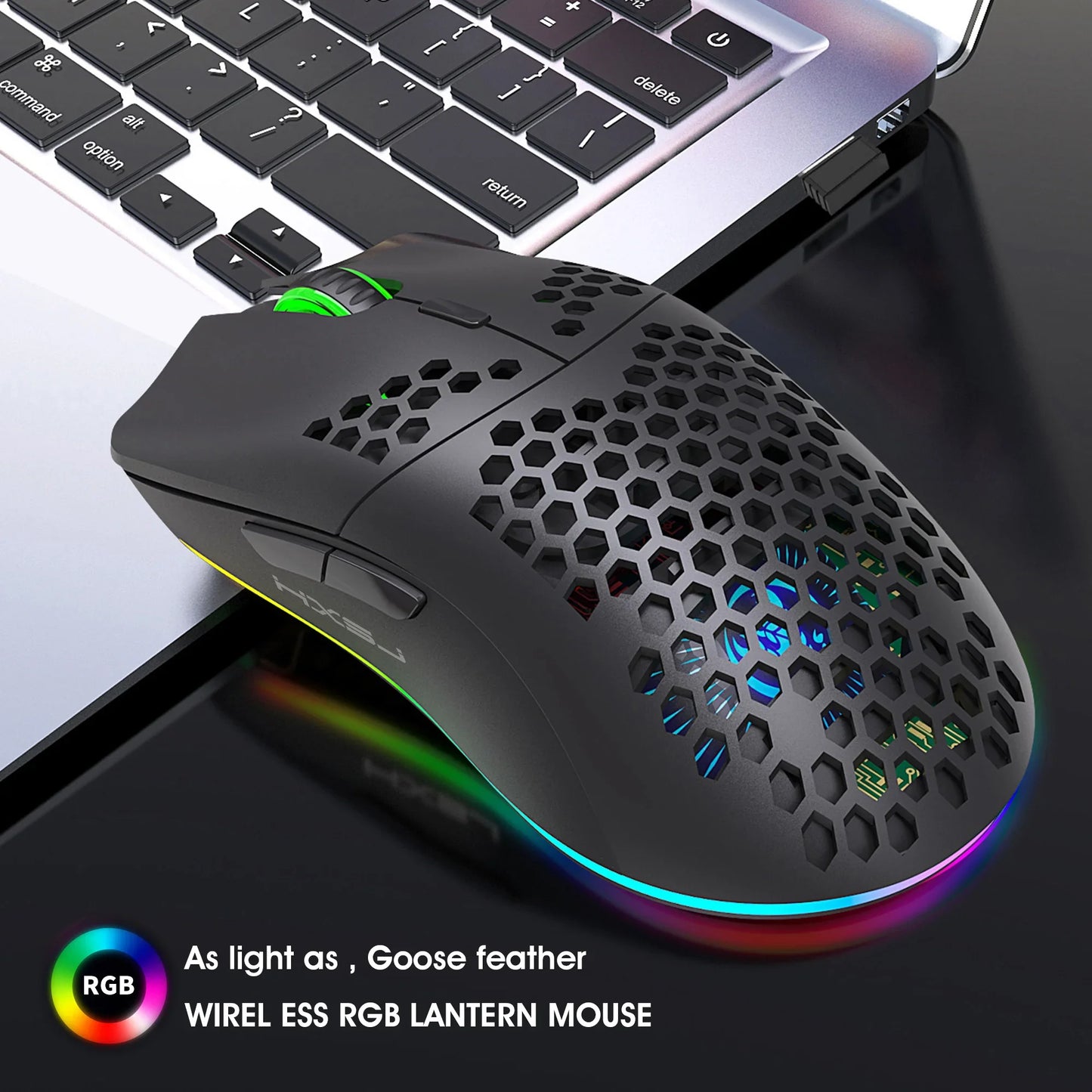

Mouse parameters:

Brand/Model: HXSJ/T66

2.4 G wireless charging mouse

Color: Black, White

Mouse type: 2.4 GHz wireless mouse

Number of keys: 6 keys

Rate of return: 125HZ

Moving speed: 30IPS

Refresh rate: 4800FPS

Acceleration: 10G

Wireless distance: 10m

Battery capacity: 600mAh

Power type: Rechargeable

Operation mode: Photoelectric

Light-emitting type: RGB light-emitting (multiple lighting modes)

Button life: 10 million switches

DPI: Four gears 800-1600-2400-3600dpi

Rated voltage/current 3.7V / 15mA

Accurate tracking: professional lC positioning accuracy

Product weight: 81.5g

Product size: 13 * 6.7 * 3.8cm

Package weight：139 g

Package size:13.5*8.5*4.7cm

Package includes:

1 x Mouse

1 x USB Receiver

1 x USB Charging Cable

1 x English User Manual

Applicable System:

Windows (Windows XP / Vista / 7/8 / Server 2003 /2000 / Win10, etc.) mac OS (mac OS 10.10 above is recommended)

In 2.4G mode:

suitable for desktop computers, laptop computers, with USB interface Smart TV etc.

Three-level power saving mode:

1): Three seconds into the first sleep light flashing continuously

2): 1 minute or so to enter the secondary sleep, intermittent flashing lights

3): 8 minutes or so, go to level 3 sleep, the light goes out

Instructions for use：

1). Remove the wireless mouse from the box.

2). Plug the mini receiver into the computer's USB port, free code, plug and play.

Keyboard specifications:

Specification item：Wired +2.4G+ Bluetooth Triple mode keyboard

Product number: L500 Compact membrane keyboard

Interface Type : USB TO TYPE-C Interface

Connection method：Wired + BT5.0 + 2.4G Triplemode

Built-in battery capacity: 2000mA Rechargeable lithium battery

Light mode: Multiple RGB light modes

Number of keys: 61 Keys

Button life:10 million times or more

Operating Voltage:3.3V~4.2V DC

Working current:50mA (MAX)

Charging Cable:1.7m±0.3m Type-C Interface

Key cap material :ABS

Key cap production process:Oil injection radium carving process glow

Multimedia:With multimedia (laser carving)

Product weight: 391g

Product size: 29.2*10.2*4CM

Packagesize: 32*13*4.5cm

Packageweight: 540g

Package included:

1x Gaming keyboard

1x USB receiver

1x 1.7M Type-C charging cable

1x English User manual

System compatibility:

Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10/WIN11 and Mac OS and Linux the latest system

Supported devices:

Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time.

Compound function key switch:

Backlight adjustment:

FN+{[= Turn on and off the light

FN+]}= 8 color switch

FN+\|= RGB switch

FN+>.= Light + 4th gear

FN+.<= Light - 4th gear

FN+:; = Slow four breaths

FN+ '" = Breathe fourgears faster

Compound function key switch:

FN + Q = 2.4 G

FN+I= BT 1

FN+O= BT 2

FN+P= BT 3

FN+E= Wired

FN+W= Toggle arrow keys

FN+R= Volume -

FN+T= Volume +

FN+Y= Mute

FN+ESC=~`

FN+1! key: F1

FN+2@ key: F2

FN+3# key: F3

FN+4$ key: F4

FN+5% key: F5

FN+6^ key: F6

FN+7& key: F7

FN+8* key: F8

FN+9 (Key: F9

FN+0) key: F10

FN+- key: F11

FN+ =+ key: F12

FN+Back key: Delete

FN+Win =Lock the key Win and APP

Bluetooth Connection:

1.Turn the switch at the bottom of the keyboard to ON.

2. Press and hold the key FN+I= BT1, FN+O= BT2, FN+P= BT3. At this time, the green light flashes

rapidly under the F3 key, and the keyboard enters the state of sending Bluetooth code pairing (code

pairing mode).

3. Open your Bluetooth device search, find BTname, click Connect, LED stop flashing, Bluetooth

connection successful.

2.4G connection mode:

1. Turn the switch at the bottom of the keyboard to ON.

2. Hold down the FN+Q key. The green indicator under the F3 key blinks rapidly. Keyboard entered 2.4G

pairing mode.

3. Insert the 2.4G receiver. After the connection is successful, the green light of E key will no longer

blink.

Wired connection:

1. Turn the switch at the bottom of the keyboard to OFF.

2. Hold down the FN+E key. The green indicator under the F3 key blinks rapidly. Plug the keyboard cable USB port into the computer Settings to complete the connection.

◎Automatic sleep power saving mode:

Supports not operating the keyboard within 30 seconds, the backlight turns off by itself, the keyboard enters the sleep state, press any key to wake up.

◎The charging indicator light is red when charging, and the light is off when fully charged.

When the low voltage indicator is flashing, it indicates that the battery is insufficient, please charge it

in time;

◎Built-in 2000mA capacity battery, fully charged with 5V/1A equipment in about 2 hours; you can continue to use this product while charging.
